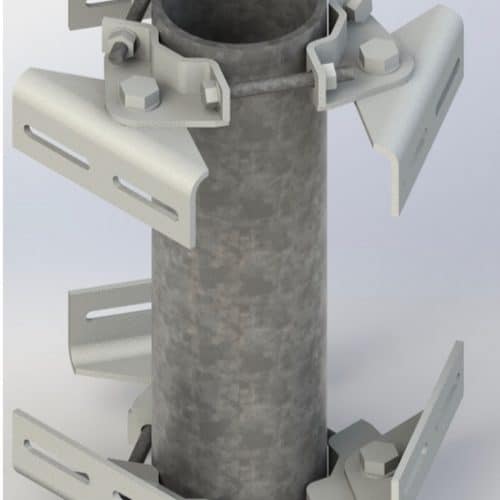

The DC470 Type 7 Retrofit Headframe provides an extremely flexible upgrade solution to a three or six pole headframe, from an existing single pole head frame. The retro fit headframe attaches directly to an existing single pole headframe without the need for drilling, cutting or welding.
The Type 7 brackets offer a number of options including 3 pole and 6 pole upgrade. The headframe brackets are adjustable to offer an antenna separation of between 583mm and 860mm, measured centre to centre with antennas at standard 120° layout, without the need for any additional equipment. The DC470 can be orientated through 360° to offer maximum antenna placement flexibility.
