Product Details
  • Available in Light, Medium and Heavy-Duty versions
  • Maximum capacity for 4 No. Antenna
  • Footprint – 2.5m² / 3.0m² / 3.5m² / 4.0m²
  • Height – 3m / 4m
  • Optional ladder system
  • Varying no.of Ballast blocks required depending on range

DC480 – MODULAR ROOFTOP SOLUTION

Inquire Now

DC480 – MODULAR ROOFTOP SOLUTION

enquire Now
SKU: dc480-4-0-x-4-0-high Category:

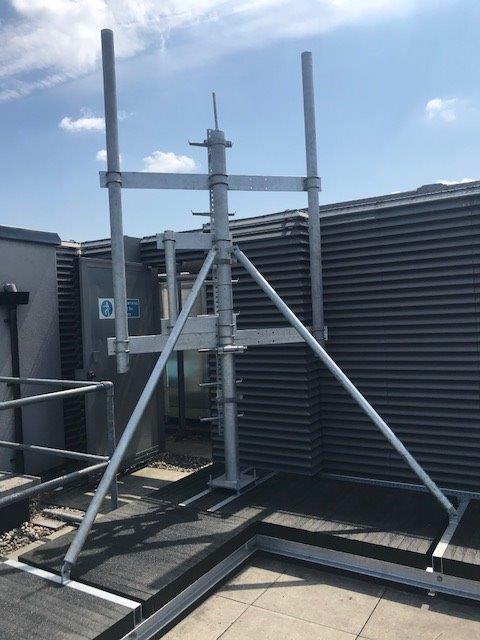

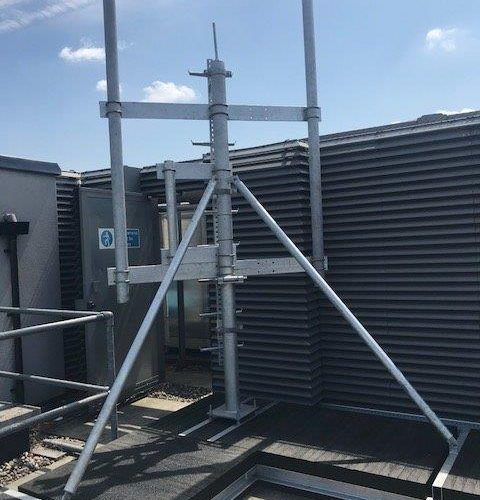

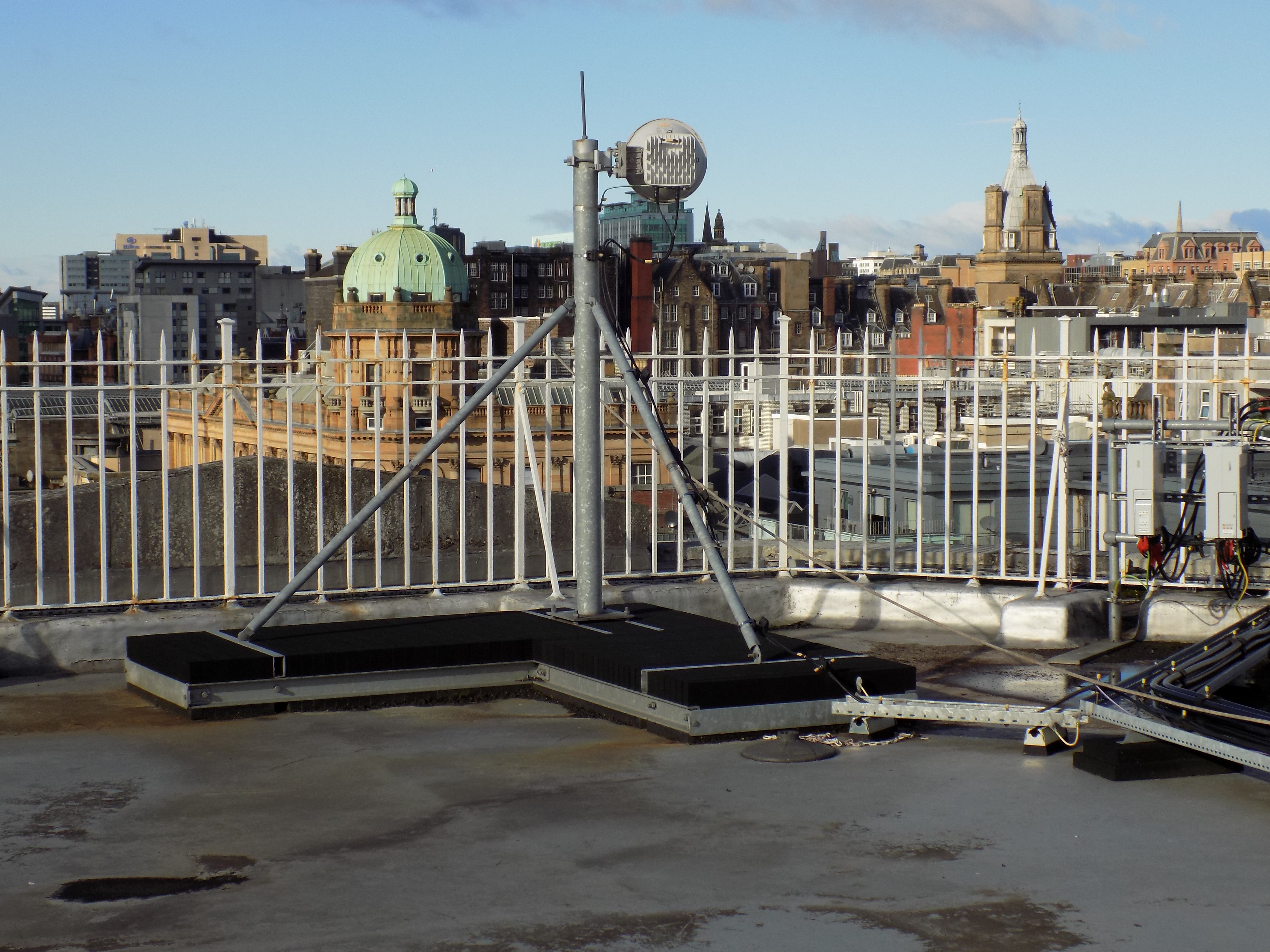

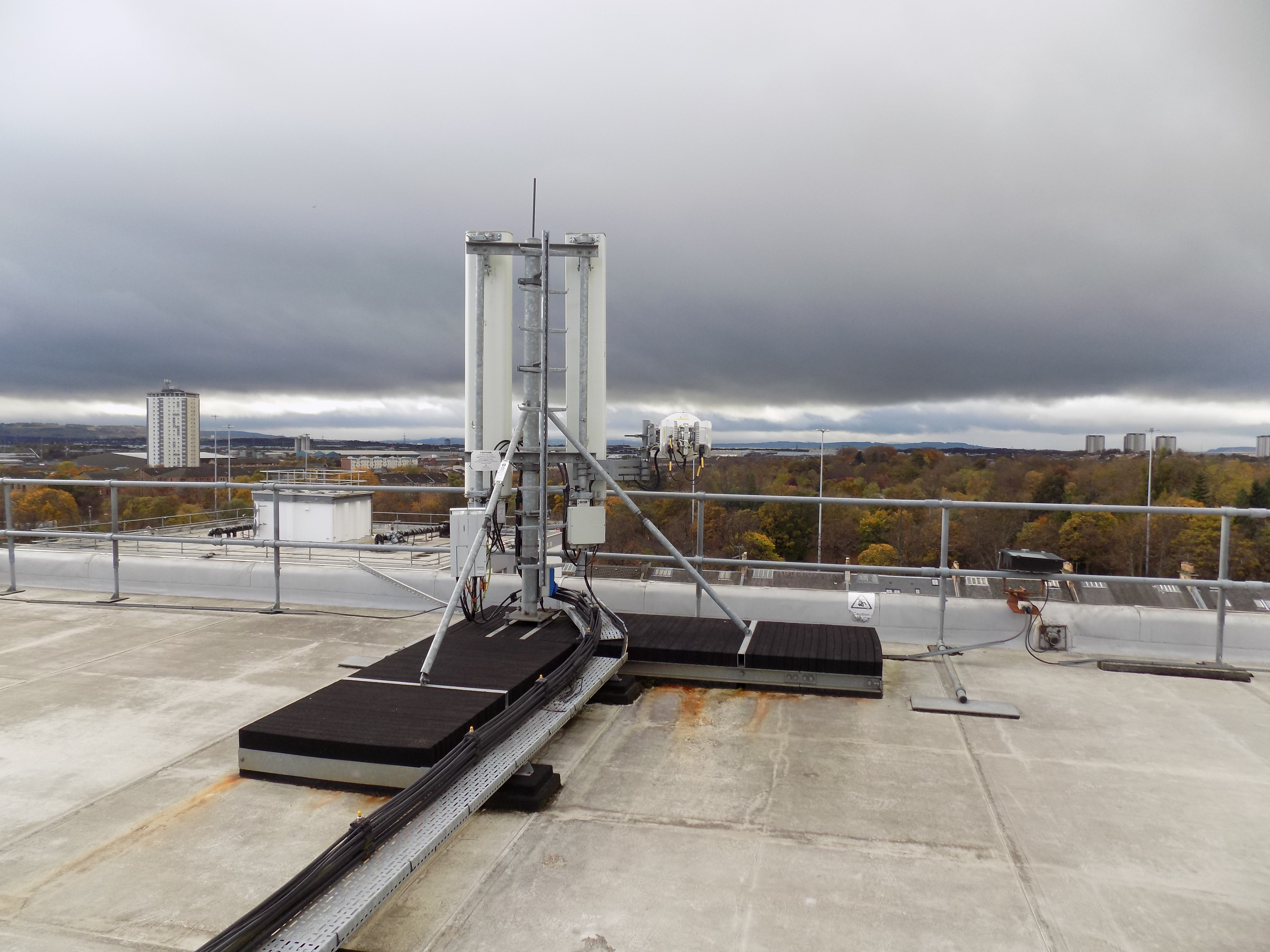

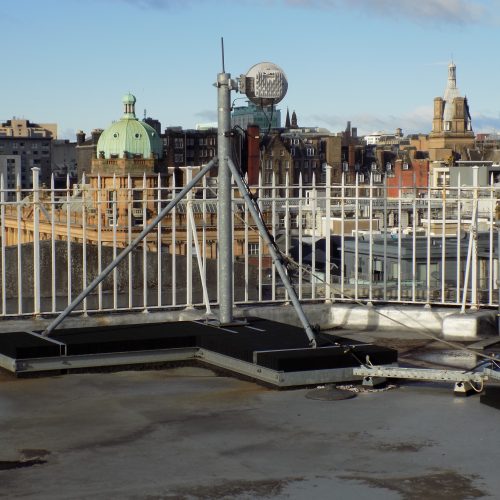

The DC480 is a fully modular, self-supporting rooftop solution designed to offer ultimate flexibility and convenience for rooftop installations.

This landlord-friendly solution avoids issues surrounding conventional rooftop mounting; such as damage to the base building and water penetration. This is thanks to the self-supporting design of the DC480, which uses gravity as the restraint instead of fixing to the base building, with ballast provided via recycled interlocking blocks which also spread the load over the roof minimising the impact on the base building.

The DC480 is available from stock in light, medium and heavy-duty ranges; up to a maximum of 4No. panel antennas and with options for RRU and dish mounting. As the system is modular it can also be easily modified to suit any unusual roof layouts; our design engineers can visit a site and design a bespoke layout using the standard kit of parts.

All individual components have been designed to allow for a two person install team to carry to a rooftop should there be restricted access for lifting plant. Furthermore, the system is a kit of parts which is easy to assemble and dismantle with all parts designed to be manhandled; facilitating a quick and simple installation process.

Benefits

  • No penetrative or intrusive roof works required, therefore will not compromise weatherproofing causing minimal disruption to building and occupants.
  • A modular, flexible system allowing for ease of alterations, upgrade, expansion or decommissioning.
  • Suitable for deployment directly on to all standard roof finishes.
  • No crane required – can be manually carried to site. Quick & simple to install.
  • All components under 25kg
  • Climbable and non-climbable options available.
  • Recycled rubber components are sustainable and require no additional maintenance.

The DC480 is a fully modular, self-supporting rooftop solution designed to offer ultimate flexibility and convenience for rooftop installations.

This landlord-friendly solution avoids issues surrounding conventional rooftop mounting; such as damage to the base building and water penetration. This is thanks to the self-supporting design of the DC480, which uses gravity as the restraint instead of fixing to the base building, with ballast provided via recycled interlocking blocks which also spread the load over the roof minimising the impact on the base building.

The DC480 is available from stock in light, medium and heavy-duty ranges; up to a maximum of 4No. panel antennas and with options for RRU and dish mounting. As the system is modular it can also be easily modified to suit any unusual roof layouts; our design engineers can visit a site and design a bespoke layout using the standard kit of parts.

All individual components have been designed to allow for a two person install team to carry to a rooftop should there be restricted access for lifting plant. Furthermore, the system is a kit of parts which is easy to assemble and dismantle with all parts designed to be manhandled; facilitating a quick and simple installation process.

Benefits

  • No penetrative or intrusive roof works required, therefore will not compromise weatherproofing causing minimal disruption to building and occupants.
  • A modular, flexible system allowing for ease of alterations, upgrade, expansion or decommissioning.
  • Suitable for deployment directly on to all standard roof finishes.
  • No crane required – can be manually carried to site. Quick & simple to install.
  • All components under 25kg
  • Climbable and non-climbable options available.
  • Recycled rubber components are sustainable and require no additional maintenance.
Capacity Details
  • Available in Light, Medium and Heavy-Duty versions
  • Maximum capacity for 4 No. Antenna
  • Footprint – 2.5m² / 3.0m² / 3.5m² / 4.0m²
  • Height – 3m / 4m
  • Optional ladder system
  • Varying no.of Ballast blocks required depending on range
